RabbitMQ Configuration

With tens of thousands of users, RabbitMQ is one of the most popular open source message brokers. RabbitMQ is lightweight and can to deployed on premises and in the cloud. RabbitMQ can also be deployed in distributed and federated configurations to meet high-scale, high-availability requirements.

RabbitMQ provides features such as routing, reliable delivery, and message persistence. It also has a built-in management interface that allows for monitoring and management of the broker, queues, and connections. Additionally, it supports various plugins, such as the RabbitMQ Management Plugin, that provide additional functionality.

MassTransit fully supports RabbitMQ, including many of the advanced features and capabilities.

Tip

To get started with RabbitMQ, refer to the configuration section which uses RabbitMQ in the examples.

Configure the bus using RabbitMQ

The minimum configuration to get started with RabbitMQ is shown below. The host name is localhost, the virtual host is /, and the credentials are guest:guest. In this example, no consumers are configured, so the bus will not receive any messages.

namespace RabbitMqConsoleListener;

using System.Threading.Tasks;
using MassTransit;
using Microsoft.Extensions.Hosting;

public static class Program
{
    public static async Task Main(string[] args)
    {
        await Host.CreateDefaultBuilder(args)
            .ConfigureServices(services =>
            {
                services.AddMassTransit(x =>
                {
                    x.UsingRabbitMq((context, cfg) =>
                    {
                        cfg.Host("localhost", "/", h =>
                        {
                            h.Username("guest");
                            h.Password("guest");
                        });
                    });
                });
            })
            .Build()
            .RunAsync();
    }
}

Sample configuration

The configuration includes:

• The RabbitMQ host
  • Host name: localhost
  • Virtual host: /
  • User name and password used to connect to the virtual host (credentials are virtual-host specific)
• The receive endpoint
  • Queue name: order-events-listener
  • Consumer: OrderSubmittedEventConsumer
    • Message type: OrderSystem.Events.OrderSubmitted

Name	Description
order-events-listener	Queue for the receive endpoint
order-events-listener	An exchange, bound to the queue, used to send messages
OrderSystem.Events:OrderSubmitted	An exchange, named by the message-type, bound to the order-events-listener exchange, used to publish messages

When a message is sent, the endpoint address can be one of two values:

exchange:order-events-listener

Send the message to the order-events-listener exchange. If the exchange does not exist, it will be created. MassTransit translates topic: to exchange: when using RabbitMQ, so that topic: addresses can be resolved – since RabbitMQ is the only supported transport that doesn’t have topics.

queue:order-events-listener

Send the message to the order-events-listener exchange. If the exchange or queue does not exist, they will be created and the exchange will be bound to the queue.

With either address, RabbitMQ will route the message from the order-events-listener exchange to the order-events-listener queue.

When a message is published, the message is sent to the OrderSystem.Events:OrderSubmitted exchange. If the exchange does not exist, it will be created. RabbitMQ will route the message from the OrderSystem.Events:OrderSubmitted exchange to the order-events-listener exchange, and subsequently to the order-events-listener queue. If other receive endpoints connected to the same virtual host include consumers that consume the OrderSubmitted message, a copy of the message would be routed to each of those endpoints as well.

::alert{type="danger"}

When an event is published, MassTransit creates the necessary exchange for it, such as OrderSystem.Events:OrderSubmitted. However, if the listener hasn’t started the bus yet, there won’t be a queue bound to that exchange, and any messages published will be lost. Once the listener starts the bus for the first time, it creates and binds the queue to the exchange. From that point on, even if the bus is stopped, the queue will remain bound to the exchange, ensuring that new messages are not lost. ::

Durable exchanges and queues remain configured on the virtual host, so even if the bus is stopped messages will continue to be routed to the queue. When the bus is restarted, queued messages will be consumed.

Configure RabbitMQ Transport Options

All RabbitMQ transport options can be configured using the .Host() method. The most commonly used settings can be configured via transport options.

services.AddOptions<RabbitMqTransportOptions>()
    .Configure(options =>
    {
        // configure options manually, but usually bind them to a configuration section
    });

Property	Type	Description
Host	string	Network host name
Port	ushort	Network port
ManagementPort	ushort	Management API port
VHost	string	Virtual host name
User	string	Username
Pass	string	Password
UseSsl	bool	True to use SSL/TLS

Configure RabbitMQ using Host

MassTransit includes several RabbitMQ options that configure the behavior of the entire bus instance.

Property	Description
PublisherConfirmation	MassTransit will wait until RabbitMQ confirms messages when publishing or sending messages (default: true)
Heartbeat	The heartbeat interval used by the RabbitMQ client to keep the connection alive
RequestedChannelMax	The maximum number of channels allowed on the connection
RequestedConnectionTimeout	The connection timeout
ContinuationTimeout	Sets the time the client will wait for the broker to response to RPC requests. Increase this value if you are experiencing timeouts from RabbitMQ due to a slow broker instance.

UseCluster

MassTransit can connect to a cluster of RabbitMQ virtual hosts and treat them as a single virtual host. To configure a cluster, call the UseCluster methods, and add the cluster nodes, each of which becomes part of the virtual host identified by the host name. Each cluster node can specify either a host or a host:port combination.

While this exists, it’s generally preferable to configure something like HAProxy in front of a RabbitMQ cluster, instead of using MassTransit’s built-in cluster configuration.

ConfigureBatchPublish

Deprecated

This was deprecated in v8.3.2 with the update to the new RabbitMQ.Client v7

MassTransit will briefly buffer messages before sending them to RabbitMQ to increase message throughput. While use of the default values is recommended, the batch options can be configured.

Property	Default	Description
Enabled	false	Enable or disable batch sends to RabbitMQ
MessageLimit	100	Limit the number of messages per batch
SizeLimit	64K	A rough limit of the total message size
Timeout	1ms	The time to wait for additional messages before sending

x.UsingRabbitMq((context, cfg) =>
{
    cfg.Host("localhost", h =>
    {
        h.ConfigureBatchPublish(x =>
        {
            x.Enabled = true;
            x.Timeout = TimeSpan.FromMilliseconds(2);
        });
    });
});

Endpoint Configuration

MassTransit includes several receive endpoint level configuration options that control receive endpoint behavior.

Property	Description
PrefetchCount	The number of unacknowledged messages that can be processed concurrently (default based on CPU count)
PurgeOnStartup	Removes all messages from the queue when the bus is started (default: false)
AutoDelete	If true, the queue will be automatically deleted when the bus is stopped (default: false)
Durable	If true, messages are persisted to disk before being acknowledged (default: true)

Quorum Queues

Quorum queues are a more reliable, replicated queue type supported by RabbitMQ. To specify the use of quorum queues, MassTransit can be configured at the individual receive endpoint level or globally using a configure endpoints callback.

To configure a receive endpoint to use a quorum queue:

x.UsingRabbitMq((context, cfg) =>
{
    cfg.ReceiveEndpoint("queue-name", e =>
    {
        e.SetQuorumQueue(3); // replication factor of 3
    });
});

To configure all receive endpoints using a configure endpoints callback:

services.AddMassTransit(x =>
{
    x.AddConfigureEndpointsCallback((name, cfg) =>
    {
        if (cfg is IRabbitMqReceiveEndpointConfigurator rmq)
            rmq.SetQuorumQueue(3);
    });
});

Reply To Request Client

New in MassTransit v8.3.0

RabbitMQ provides a default ReplyTo address for every broker connection that can be used to send messages directly to the connection without the need to create a temporary queue. MassTransit supports use of the ReplyTo address for the request client.

::alert{type="info"}

By default, MassTransit will create a non-durable, auto-delete queue for the bus and use that queue for responses sent to the request client. ::

To configure MassTransit to use the ReplyTo address instead of the bus endpoint:

services.AddMassTransit(x =>
{
    x.SetRabbitMqReplyToRequestClientFactory();

    x.UsingRabbitMq((context, cfg) =>
    {
        cfg.ConfigureEndpoints(context);
    });
});

This will replace the default request client factory with the RabbitMQ-specific ReplyTo client factory, allowing responses to requests sent using the request client to be delivered using the broker connection’s ReplyTo address.

Configure CloudAMQP

MassTransit can be used with CloudAMQP, which is a great SaaS-based solution to host your RabbitMQ broker. To configure MassTransit, the host and virtual host must be specified, and UseSsl must be configured.

services.AddMassTransit(x =>
{
    x.UsingRabbitMq((context, cfg) =>
    {
        cfg.Host("wombat.rmq.cloudamqp.com", 5671, "your_vhost", h =>
        {
            h.Username("your_vhost");
            h.Password("your_password");

            h.UseSsl(s =>
            {
                s.Protocol = SslProtocols.Tls12;
            });
        });
    });
});

Configure AmazonMQ - RabbitMQ

AmazonMQ now includes RabbitMQ support, which means the best message broker can now be used easily on AWS. To configure MassTransit, the AMQPS endpoint address can be used to configure the host as shown below.

services.AddMassTransit(x =>
{
    x.UsingRabbitMq((context, cfg) =>
    {
        cfg.Host(new Uri("amqps://b-12345678-1234-1234-1234-123456789012.mq.us-east-2.amazonaws.com:5671"), h =>
        {
            h.Username("username");
            h.Password("password");
        });
    });
});

Configure the broker topology

With RabbitMQ, which supports exchanges and queues, messages are sent or published to exchanges and RabbitMQ routes those messages through exchanges to the appropriate queues.

The send and publish topologies are extended to support RabbitMQ features and make it possible to configure how exchanges are created.

When the bus is started, MassTransit will create exchanges and queues on the virtual host for the receive endpoint. MassTransit creates durable, fanout exchanges by default, and queues are also durable by default.

Exchanges

In RabbitMQ, an exchange is a component that receives messages from producers and routes them to one or more queues based on a set of rules called bindings. Exchanges are used to decouple the producer of a message from the consumer, by allowing messages to be sent to multiple queues and/or consumers.

There are several types of exchanges in RabbitMQ, each with its own routing algorithm:

Exchange Type	Routing Algorithm
Direct exchange	route messages to queues based on an exact match of the routing key
Fanout exchange	route messages to all bound queues
Topic exchange	route messages to queues based on a pattern match of the routing key
Headers exchange	route messages to queues based on the headers of the message

When a message is published to an exchange, the exchange applies the routing algorithm based on the routing key and the bindings to determine which queues the message should be sent to. The message is then sent to each of the queues that it matches.

Exchanges allow for more complex routing and message distribution strategies, as they allow to route messages based on different criteria, such as routing key, headers, or patterns.

When a message is published, MassTransit sends it to an exchange that is named based upon the message type. Using topology, the exchange name, as well as the exchange properties can be configured to support a custom behavior.

To configure the properties used when an exchange is created, the publish topology can be configured during bus creation:

cfg.Publish<OrderSubmitted>(x =>
{
    x.Durable = false; // default: true
    x.AutoDelete = true; // default: false
    x.ExchangeType = "fanout"; // default, allows any valid exchange type
});

cfg.Publish<OrderEvent>(x =>
{
    x.Exclude = true; // do not create an exchange for this type
});

Exchange Binding

To bind an exchange to a receive endpoint:

cfg.ReceiveEndpoint("input-queue", e =>
{
    e.Bind("exchange-name");
    e.Bind<MessageType>();
})

The above will create two exchange bindings, one between the exchange-name exchange and the input-queue exchange and a second between the exchange name matching the MessageType and the same input-queue exchange.

The properties of the exchange binding may also be configured:

cfg.ReceiveEndpoint("input-queue", e =>
{
    e.Bind("exchange-name", x =>
    {
        x.Durable = false;
        x.AutoDelete = true;
        x.ExchangeType = "direct";
        x.RoutingKey = "8675309";
    });
})

The above will create an exchange binding between the exchange-name and the input-queue exchange, using the configured properties.

RoutingKey

The routing key on published/sent messages can be configured by convention, allowing the same method to be used for messages which implement a common interface type. If no common type is shared, each message type may be configured individually using various conventional selectors. Alternatively, developers may create their own convention to fit their needs.

When configuring a bus, the send topology can be used to specify a routing key formatter for a particular message type.

public record SubmitOrder
{
    public string CustomerType { get; init; }
    public Guid TransactionId { get; init; }
    // ...
}

cfg.Send<SubmitOrder>(x =>
{
    // use customerType for the routing key
    x.UseRoutingKeyFormatter(context => context.Message.CustomerType);

    // multiple conventions can be set, in this case also CorrelationId
    x.UseCorrelationId(context => context.Message.TransactionId);
});

// Keeping in mind that the default exchange config for your published type will be the full typename of your message
// we explicitly specify which exchange the message will be published to. So it lines up with the exchange we are binding our
// consumers too.
cfg.Message<SubmitOrder>(x => x.SetEntityName("submitorder"));

// Also if your publishing your message: because publishing a message will, by default, send it to a fanout queue.
// We specify that we are sending it to a direct queue instead. In order for the routingkeys to take effect.
cfg.Publish<SubmitOrder>(x => x.ExchangeType = ExchangeType.Direct);

Global Topology

To configure transport-specific topology conventions at a global level using GlobalTopology, the appropriate conventions must be added. For example, to globally configure a RoutingKey formatter for a base interface on a message contract:

GlobalTopology.Send.TryAddConvention(new RoutingKeySendTopologyConvention());

GlobalTopology.Send.UseRoutingKeyFormatter<ICanHasRoutingKey>(x => x.Message.RoutingKey.ToString());

The consumer could then be created:

public class OrderConsumer :
    IConsumer<SubmitOrder>
{
    public async Task Consume(ConsumeContext<SubmitOrder> context)
    {

    }
}

And then connected to a receive endpoint:

cfg.ReceiveEndpoint("priority-orders", x =>
{
    x.ConfigureConsumeTopology = false;

    x.Consumer<OrderConsumer>();

    x.Bind("submitorder", s =>
    {
        s.RoutingKey = "PRIORITY";
        s.ExchangeType = ExchangeType.Direct;
    });
});

cfg.ReceiveEndpoint("regular-orders", x =>
{
    x.ConfigureConsumeTopology = false;

    x.Consumer<OrderConsumer>();

    x.Bind("submitorder", s =>
    {
        s.RoutingKey = "REGULAR";
        s.ExchangeType = ExchangeType.Direct;
    });
});

This would split the messages sent to the exchange, by routing key, to the proper endpoint, using the CustomerType property.

Endpoint Address

A RabbitMQ endpoint address supports the following query string parameters:

Parameter	Description	Implies
temporary	Temporary endpoint	durable = false, autodelete = true
durable	Save messages to disk
autodelete	Delete when bus is stopped
bind	Bind exchange to queue
queue	Bind to queue name	bind = true
type	Exchange type (fanout, direct, topic)
delayedtype	(Internal) delayed target exchange type	type = x-delayed-message
alternateexchange	Alternate exchange name
bindexchange	Bind additional exchange	Queues Only
singleactiveconsumer	(Internal) Receive endpoint has a single active consumer	Queues Only

Default Broker Topology

In this example topology, two commands and events are used.

First, the event contracts that are supported by an endpoint that receives files from a customer.

namespace Acme;

public interface FileReceived
{
    Guid FileId { get; }
    DateTime Timestamp { get; }
    Uri Location { get; }
}

public interface CustomerDataReceived
{
    DateTime Timestamp { get; }
    string CustomerId { get; }
    string SourceAddress { get; }
    Uri Location { get; }
}

Second, the command contract for processing a file that was received.

namespace Acme;

public interface ProcessFile
{
    Guid FileId { get; }
    Uri Location { get; }
}

The above contracts are used by the consumers to receive messages. From a publishing or sending perspective, two classes are created by the event producer and the command sender which implement these interfaces.

namespace Acme;

public record FileReceivedEvent :
    FileReceived,
    CustomerDataReceived
{
    public Guid FileId { get; init; }
    public DateTime Timestamp { get; init; }
    public Uri Location { get; init; }
    public string CustomerId { get; init; }
    public string SourceAddress { get; init; }
}

And the command class.

namespace Acme;

public record ProcessFileCommand :
    ProcessFile
{
    public Guid FileId { get; init; }
    public Uri Location { get; init; }
}

The consumers for these message contracts are as below.

class FileReceivedConsumer :
    IConsumer<FileReceived>
{
}

class CustomerAuditConsumer :
    IConsumer<CustomerDataReceived>
{
}

class ProcessFileConsumer :
    IConsumer<ProcessFile>
{
}

Note

The broker topology can be customized using the topology API.

Publish

These are the exchanges and queues for the example above showing the topology for a Publish of a polymorphic message that uses inheritance:

Note

MassTransit publishes messages to the message type exchange, which in turn means that copies are routed to all the subscribers by the RabbitMQ exchange. This approach was based on an article on how to maximize routing performance in RabbitMQ.

Send

These are the exchanges and queues for the example above showing the topology for a Send:

Fault

These are the exchanges and queues used when messages fail. The failing message gets forwarded to an _error queue by default. The following diagram shows which Exchanges and Queues are used when a message fails to be processed and is deadlettered for the example above.

Go to Exceptions to learn more on exception and faults

Retry messages

The RabbitMQ Management UI can retry faulted messages when used in conjunction with the Shovel plugin. Faulted messages by default end up in the *_error queue that corresponds with the consumer queue.

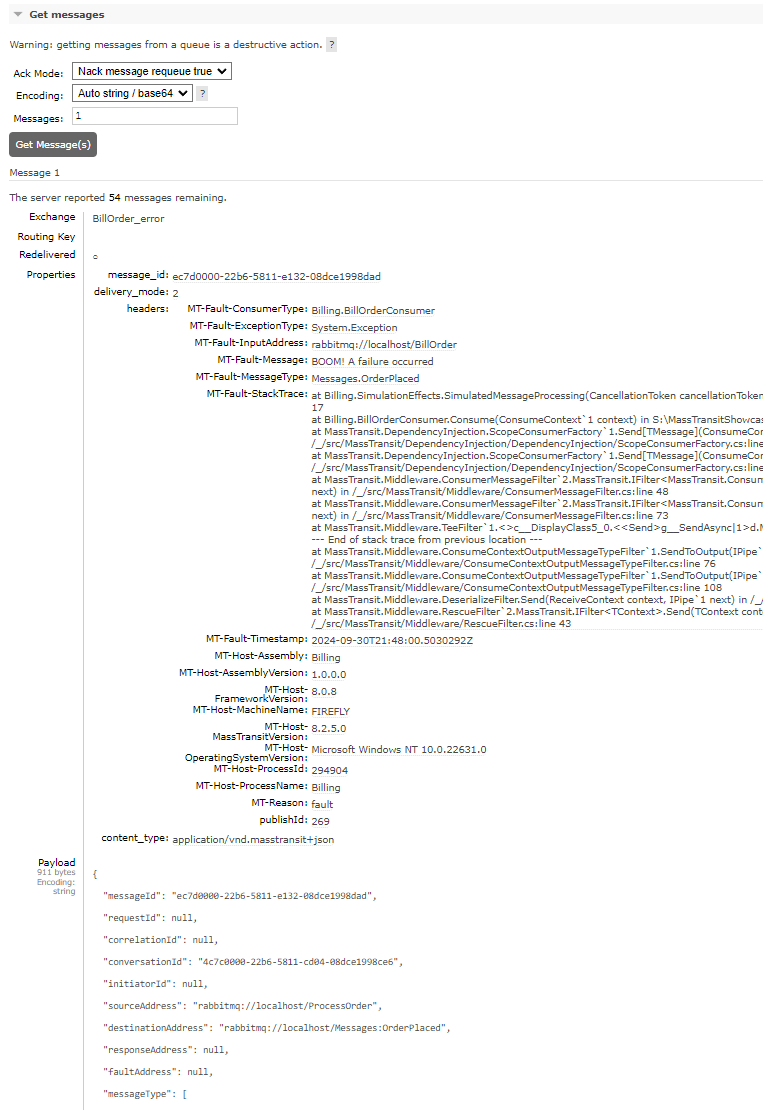

Before returning a message the message can be inspected by first fetching a message via the button Get Message(s) which returns a raw view of the message properties and payload:

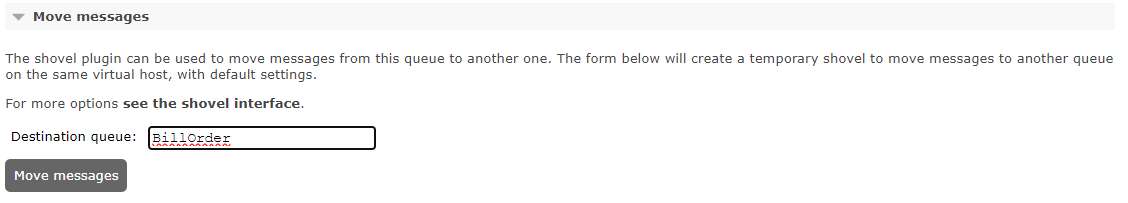

After inspection, all messsages currently stored in the error queue can be ‘shoveled’ back the the original queue.

Note

For advanced alternatives to managing failures see Exceptions - Managing Faults
